Stop Core Collapse: Aluminum Foil for Honeycomb Panels

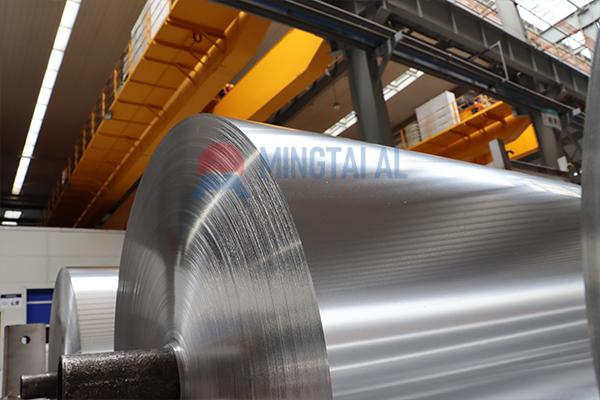

Aluminum foil for honeycomb panels is the core material for the honeycomb core. Its thickness, alloy, mechanical properties, and surface condition directly determine bonding reliability, flatness, and service life of the finished panel. Choose the wrong foil, and even the best face sheets or adhesives won’t save the result.

Most Frequently Searched Specifications: Alloy, Thickness, Temper

When selecting, focus on these three groups of parameters:

- Common alloys

`3003`, `5052`, `8011`.

For building facades and furniture, 3003 is the most cost‑effective. 5052 is used near coasts or in humid environments for better corrosion resistance. 8011 is mainly for low‑cost indoor applications.

> Why not 1100 pure aluminum? Its strength is too low – after stamping, the honeycomb rebounds poorly and tends to collapse.

- Thickness range

0.03 mm – 0.08 mm.

Indoor ceilings and furniture: often 0.04 – 0.05 mm. Outdoor facades and transport floors: 0.06 – 0.08 mm.

Note: thinner foils require higher strength and better stamping tooling.

- Temper

`H18` (full hard) or `H19` (extra hard).

They ensure low spring‑back after stamping and stable cell geometry, preventing core collapse. Avoid O or H24 tempers – they reduce production efficiency significantly.

- Width

200 – 1200 mm, customizable to your production line.

The “Hidden Thresholds” That Really Matter

Aluminum foil prices are transparent, but few suppliers can consistently meet these criteria:

- Flatness

Wave height and warp must be tightly controlled. Uneven foil leads to uneven adhesive distribution, directly causing core delamination.

Quick check: lay the foil flat on a glass table – no visible undulations.

- Residual oil content

Lower is better (≤20 mg/m² is recommended). Too much oil film (above 30 mg/m²) hinders adhesive wetting, reducing bond strength by more than 30%.

Ask for an oil residue test report, or simply wipe with white paper – obvious grease stains are a red flag.

- Thickness tolerance

Ideally within ±5%. If the tolerance is too large, the honeycomb cells will have uneven height, causing a wavy surface after panel assembly.

- Tensile strength & elongation

Typical values for H18: tensile strength ≥200 MPa, elongation ≥2%. This allows stamping and stretching without breaking.

Below 180 MPa, the foil tends to tear during honeycomb expansion.

- No oil stains, no corrosion spots

Any microscopic defect will be magnified during expansion into a broken cell, scrapping the entire panel.

How Does Aluminum Foil Affect Overall Honeycomb Panel Performance?

- Lightweight

Foil weight accounts for only 5–10% of the total panel weight, yet provides the core shear stiffness.

- Bonding reliability

The natural oxide layer on aluminum foil has good affinity for epoxy and polyurethane adhesives – provided the residual oil is extremely low. No special surface treatment is needed for reliable bonding.

- Durability

3003 alloy performs well in normal atmospheric conditions. 5052 is superior in salt‑spray or mildly alkaline environments.

If your products are exported to coastal or heavily industrial areas, 5052 is the preferred choice.

Selection Priorities for Different Applications

Three Practical Ways to Quickly Judge Supplier Quality

1. Request test reports

Focus on residual oil, tensile strength, and elongation. All three are essential. Make sure the reports correspond to your required thickness.

2. Visual flatness check + trial stamping

Unwind a short length to look for S‑curves or waves. Take a 0.5 m piece and stamp it into honeycomb – check whether the cells are regular and free of cracks. This is the most intuitive method.

3. Check width tolerance and edge burrs

Burrs will scratch adjacent layers during unwinding. Width deviation exceeding ±1 mm may cause misalignment on your production line. Use a caliper for random checks.

The Right Foil Makes Your Honeycomb Panel Stand

Thin as it is, aluminum foil is the skeleton of the honeycomb structure. Alloy grade, thickness tolerance, and surface cleanliness – each parameter affects your final yield and product life. Choose based on “indoor vs. outdoor” and “load‑bearing vs. non‑load‑bearing”, not just price.

Reliable aluminum foil for honeycomb panels starts with a consistent supplier.

Mingtai Aluminum delivers stable batches of foil with mechanical and cleanliness indicators customizable to your line requirements.

FAQ

Q: What is the most common foil thickness for honeycomb cores?

A: 0.04 mm – 0.06 mm; thicker (0.06–0.08 mm) for facades, thinner (0.04–0.05 mm) for indoor use.

Q: 3003 vs 5052 for outdoor facades – which one?

A: 3003‑H18 for normal cities; 5052‑H18 for coastal or heavy industrial areas.

Q: How much residual oil is too much for bonding?

A: Above 30 mg/m² significantly reduces adhesion. Good quality requires ≤20 mg/m².

Q: What happens if the foil is too soft or too hard?

A: Too soft → core collapses after stamping. Too hard → cracks during stretching. H18/H19 are the standard full‑hard tempers.

Q: Does the foil need a pre‑applied adhesive layer?

A: No – honeycomb panel producers apply adhesive in‑line. The foil only needs to be clean and low‑oil.
