How Does Aluminum Foil for Electronics Shielding Work?

Material Application: Electronics Shielding

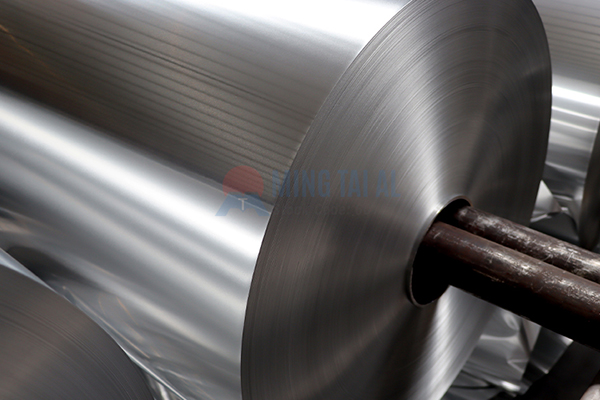

Product: 1235 and 8011 aluminum foil

Project Details:

Aluminum foil for electronics shielding has become an indispensable solution in modern electronic environments plagued by increasing electromagnetic interference. With its unique physical properties and structural advantages, it plays a critical role in shielding applications across industries such as telecommunications, industrial control, and medical equipment. This article delves into the working mechanisms, material selection, and applications of aluminum foil for electronics shielding, along with recommendations for premium suppliers.

Why Choose Aluminum Foil for EMI Shielding?

The core advantages of aluminum foil lie in its lightweight nature, flexibility, and cost-effectiveness. Compared to metals like copper, aluminum foil offers lower density, reducing device weight while maintaining excellent conductivity. Its natural oxide layer acts as an insulating barrier, blocking electromagnetic waves and preventing short circuits. Additionally, aluminum foil is significantly more cost-effective to process than copper foil, making it ideal for mass-produced applications like communication cables and data lines. For instance, in medical devices or industrial settings with strong electromagnetic interference, aluminum foil shielding effectively isolates external noise, ensuring stable signal transmission.

Common Aluminum Alloy Types & Properties

Electronics shielding primarily utilizes 1235 and 8011 aluminum foil. The 1235 alloy, with over 99.35% aluminum content, offers superior corrosion resistance, formability, and weldability, making it suitable for high-frequency signal transmission. The 8011 alloy, enhanced with iron and silicon, provides higher mechanical strength and surface cleanliness, ideal for composite processing. Both can be laminated with polyester films to create aluminum-plastic composite tapes, further improving shielding effectiveness and corrosion resistance. For example, in LAN cabling, aluminum-Mylar tapes bonded tightly to cable cores can effectively block EMI across the 100K–3GHz frequency range.

Core Shielding Mechanisms of Aluminum Foil

Aluminum foil’s shielding efficiency relies on Faraday’s law of electromagnetic induction. When high-frequency electromagnetic waves contact the foil surface, the induced electromagnetic field generates eddy currents, converting wave energy into heat. Simultaneously, the foil’s continuous structure forms a closed loop, channeling induced currents to the ground and preventing interference. Practical applications require a minimum overlap rate of 25% to ensure seamless coverage. For instance, in aerospace thermal insulation materials, aluminum foil layers not only provide EMI shielding but also reflect radiant heat, reducing equipment temperatures.

Key Applications & Industry Cases

Aluminum foil is widely used in telecommunications, industrial systems, and consumer electronics. In communication cables, aluminum-Mylar tapes reduce crosstalk in high-EMI environments like hospitals and factories. In industrial control systems, aluminum foil shields protect motors and transformers from current leakage. In consumer electronics, aluminum adhesive tapes secure PCBs while offering shielding and moisture resistance. For example, a data center using Mingtai Aluminum’s shielded network cables reported a 30% improvement in transmission stability and a 50% drop in failure rates.

Recommended Supplier: Mingtai Aluminum

As a leading domestic producer, Mingtai Aluminum specializes in R&D and manufacturing of aluminum foil for electronics shielding, offering 1235, 8011, and customizable alloys. Its products feature high cleanliness, strong adhesion, and exceptional environmental adaptability, backed by international certifications. Whether for communication cables, data lines, or industrial shielding, Mingtai delivers reliable solutions. For inquiries or purchases, contact their support team at +8617737126910.

By selecting the right aluminum foil materials and structures, electronic devices can achieve optimal EMI shielding, ensuring signal integrity and operational safety. Mingtai Aluminum combines expertise and superior service to help clients navigate complex electromagnetic challenges.
